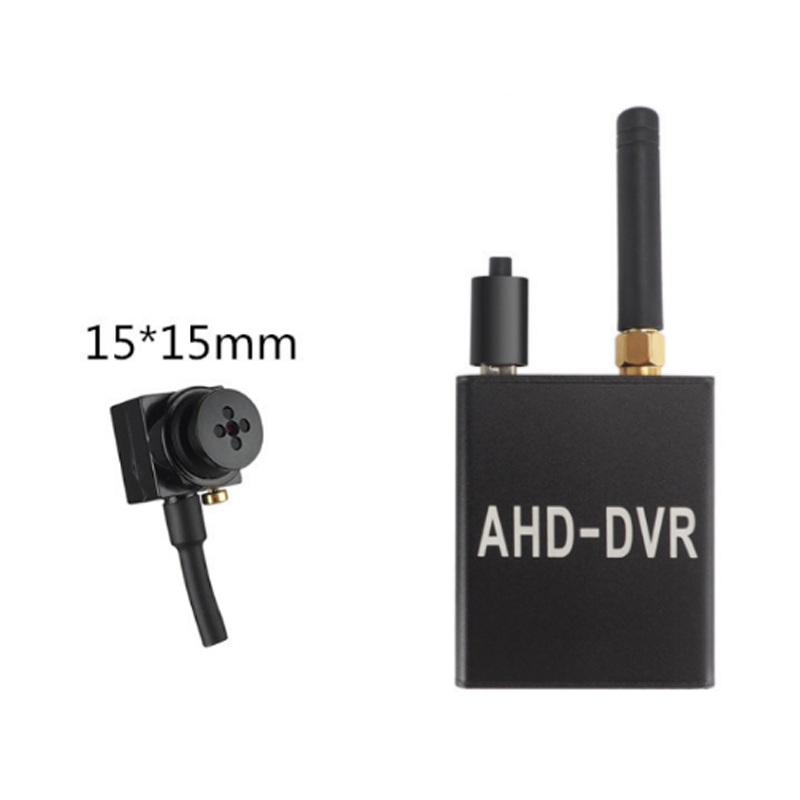

WIFI DVR Advantage feature
★Super mini size;
★30 frame per second, full real-time smooth HD monitoring;
★H. 265 video decoding and coding, clearer picture, less storage space, low code rate and smoother remote video;
★WiFi remote real-time monitoring, playback and download Video;
★Its own hotspot can be connected without network;
★Support all AHD / TVI / CVI camera of 720P / 1080P, PAL / NTSC, ;
★Built-in battery, ok to work 1-1.5 hours
★With mobile APP ( android and IOS ) and computer client software;
★Support standard ONVIF and RTSP protocol and access to any NVR
Technical Parameters
DVR :
★Video recording resolution ( on APP to set ) :1080P/360P
★Audio sampling rate:64kbps
★Audio sampling bits:16 bits
★Audio input:Analog sound source input
★Memory card:Up to 128GB TF Card
★Video motion detection:Support
★Video auto overwriting:Support
★Onvif:Support
★rtsp:Support
★WIFI frequency:2.4G wifi / 4G ,
★Power input:DC5V 1A , micro-usb
★Power output:3.3V 200mA ( last for 1 hour after full charge, if you need it work longer than 1hour ,better to add a power bank for it )
★DVR power consumption:1.8W
★DVR size:45*53.5*18.5mm
★DVR weight:0.15KG
★Packing dimension:113*93.5*41.5mm
★weight:0.2KG

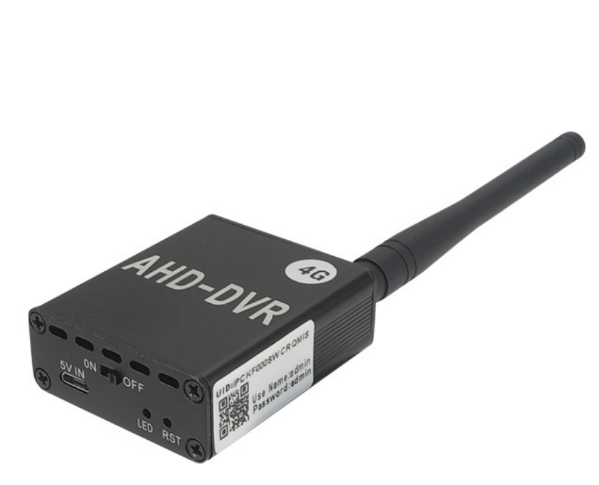

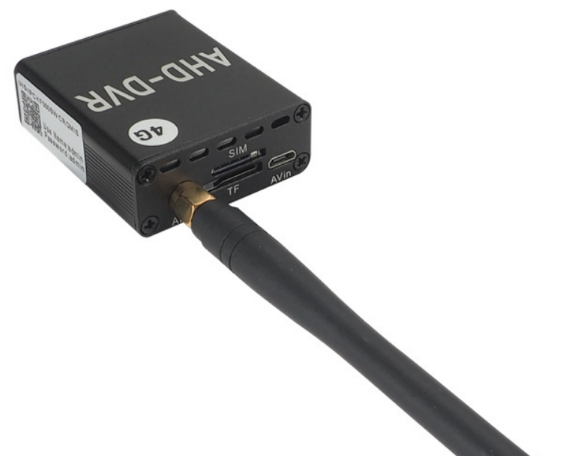

4G model ( insert 4G sim card make it on internet to realize remote monitor ) :

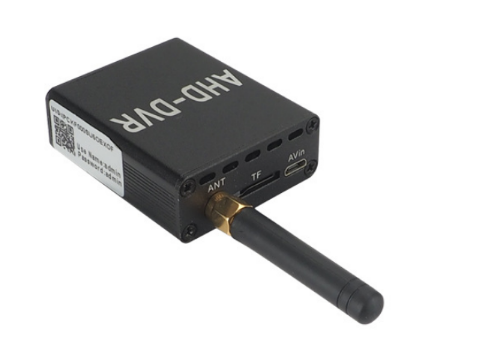

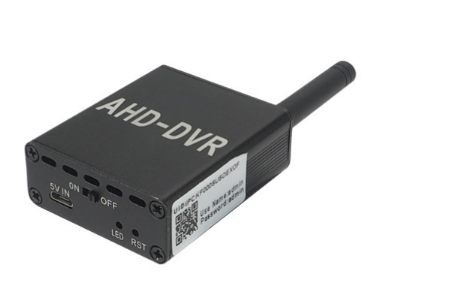

Wifi model ( need wifi or wifi hotpot for make it on internet to realize remote monitor ) :

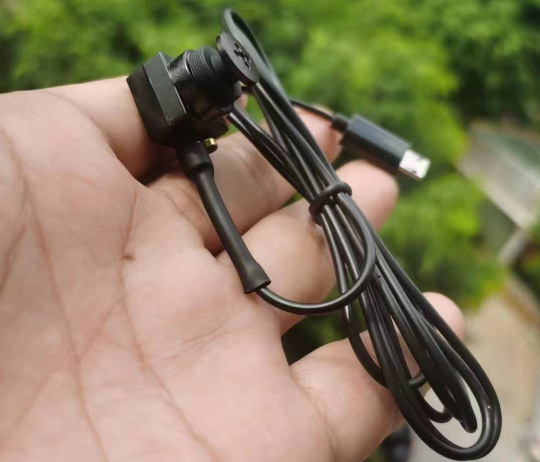

Camera
★Format :AHD 1080P
★Pixel : 2.0MP camera
★Focal length : 6mm
★Cable length : 1.5m
★Port : micro-usb
Screen short cut of video :

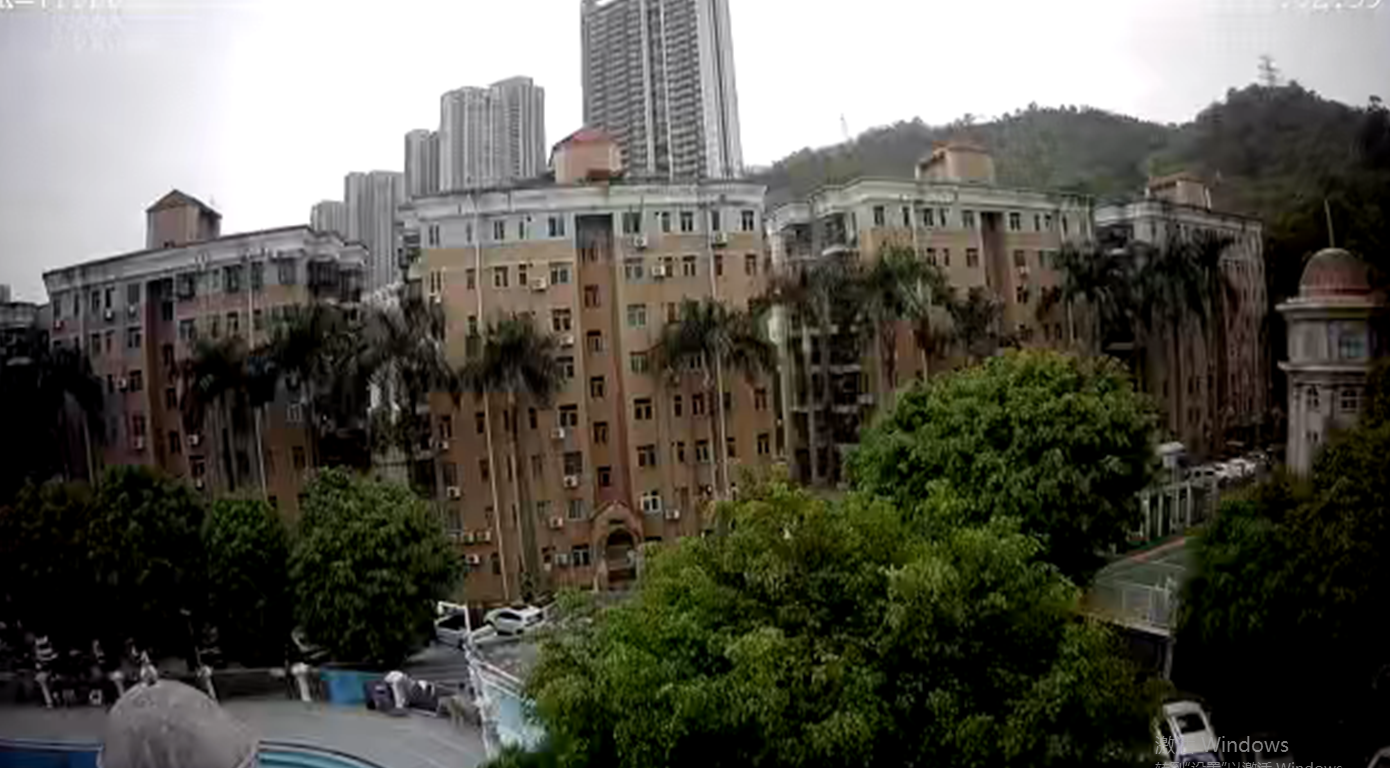

A. Normal recordings ( 60-80meters ) :

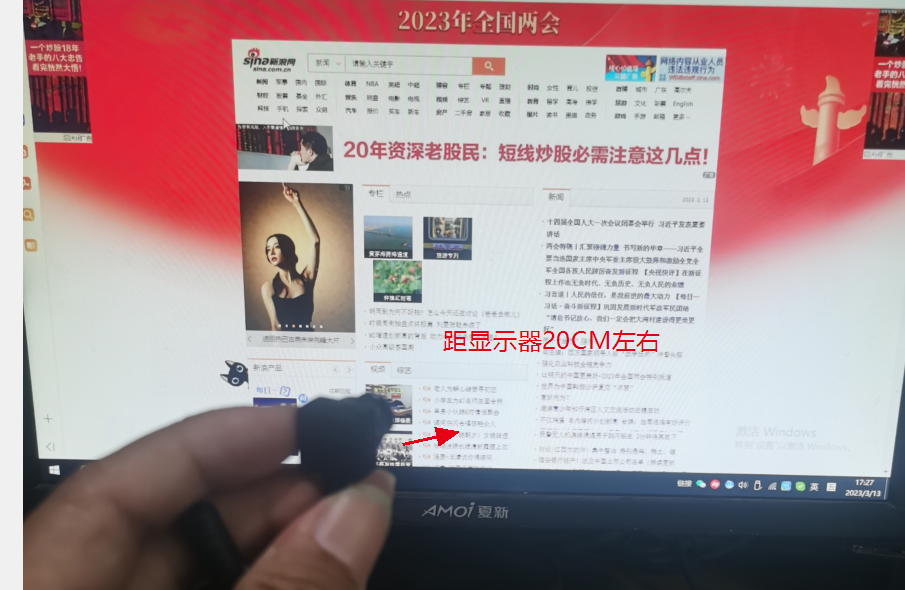

B. Read on screen :
1)Camera lens to screen is 15-20cm distance :

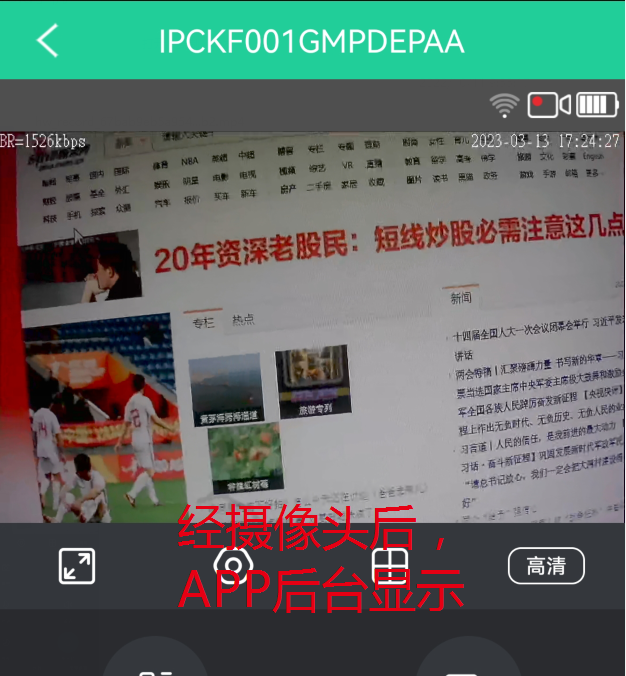

App display :
Shipping content :
DVR x 1 ( wifi model or 4G model , please choose according to your need )
Camera x 1
USB cable x 1
Manual x 1
Usage :
scan on manual to download app
Turn on DVR
Set DVR to connect to wifi
Run APP , add camera
