GPS+Glonass+Beidou Booster 3 in One Repeater Enlarger GNSS Signal Amplifier Set Tri-band Weak Indoor Satellite Signal Extender

For :

1.  GPS L1 : great performance
2.  Russia Glonass G1 : great performance
2.  China Beido B1 : great performance  ;

may work for Galileo E1 ( mobile phones does not support Galileo satellite, so not have a test way  )

Not for GLONASS L2 , GPS L2 L5 ,Beidou B2 B3,

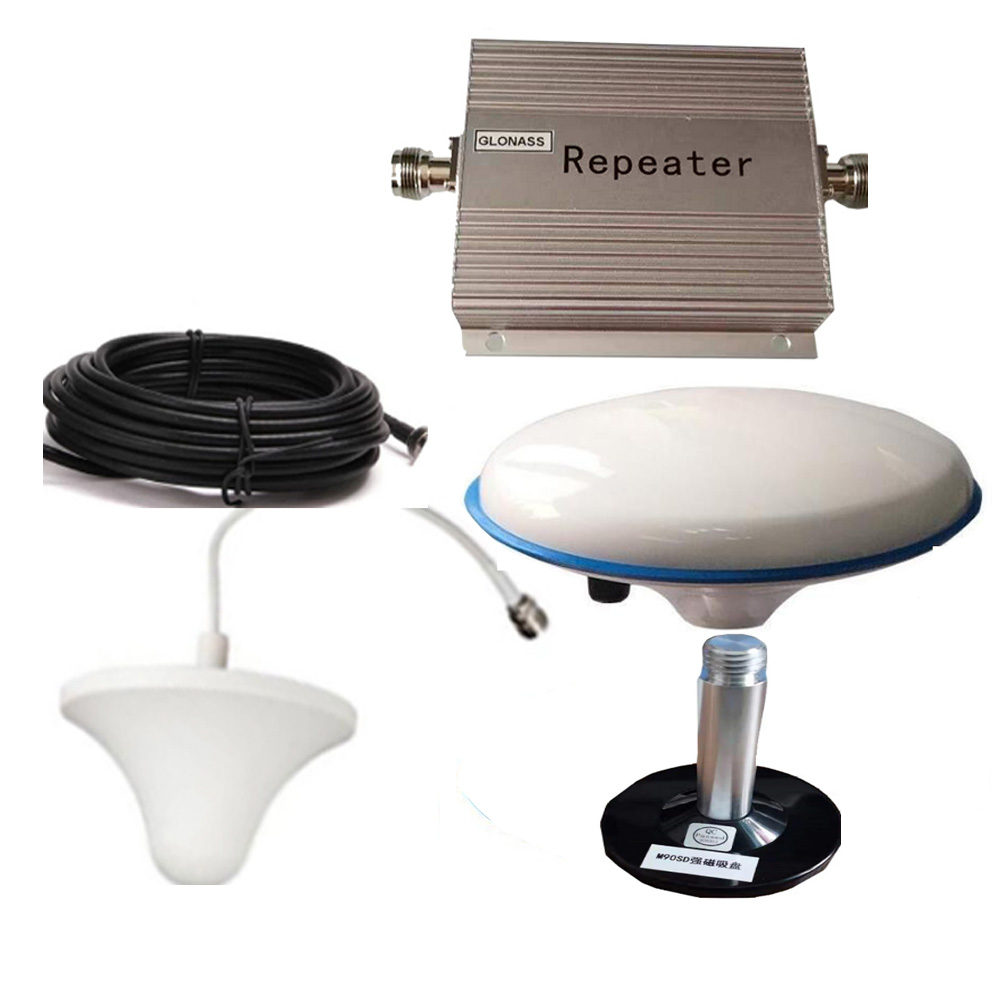

Sales here is a set included :
1x outdoor antenna w.5-30 meters cable(75ohm-5 or rg 58 ) , if you need longer cable please contact
1x Glonass booster
1x power adaptor
1x indoor antenna
1X magnet base bracket for outdoor antenna, suck on metal surface .

Booster feature :
Voltage :  110-220V AC to DC12V 1A (DC3.5 connector )
Connector : N female
Frequency :1602+0.5625*k(MHz)
Gain: 55dbi
Output power : 17dbm
VSVR :≤1.5

Outdoor antenna :
Frequency Range(MHz) : BDS B1, GPS L1, GLONASS L1 ,GALILEO E1
Gain(dBi) <5.5
Antenna AR(dB) ≤3.0
Phase center error(mm) :  ±2
Polarization : Right-hand circular polarization
Impedance : 50Ω
LNA Gain(dB) ： 40±2
Noise figure(dB) ： ≤1.8
VSWR ：  ≤2.0
Operating voltage(V) ： 2.8V-5.0V
Operating current ：  ≤45mA
Connector type ： N
Antenna size(mm) ： Ф160*66.5
Weight(g) ： 370

Indoor antenna  :

1. 250-300 square meters suitable ;
2. Gain: 3 dbi ;
3. Suitable for 698-2700mhz
4. Max. power : 50W ;
5. Impendance : 50O ;
6. Seclusion : ≤1.5
7. Size : Φ180×90
8. Connector : N male;
9. Case : ABS material ;
10. Bandwidth : 83Mhz .
11. Packing : Brown carton ;
12. Net weight :0.35kG
13. CABLE  : 3 METERS

Cable :
RG58 or 50-3 Coaxial cable
5-30 meters
Connector : n male .
For : connecting outdoor antenna to repeater .

Magnet bracket :
Strong magnet base bracket for outdoor antenna, ok to suck on any metal surface

Test result for reference as below and Guidance :

1. Install outdoor antenna on roof of building , where shall has enough strong satellite signal .Not ok to install antenna on balcony or beside of window .

2. Connect outdoor antenna by cable to repeater , install internal antenna onto repeater too ;
3. Connect power into repeater
4.  Test signal receiving

5. Fix repeater and internal antenna in your best place . .
