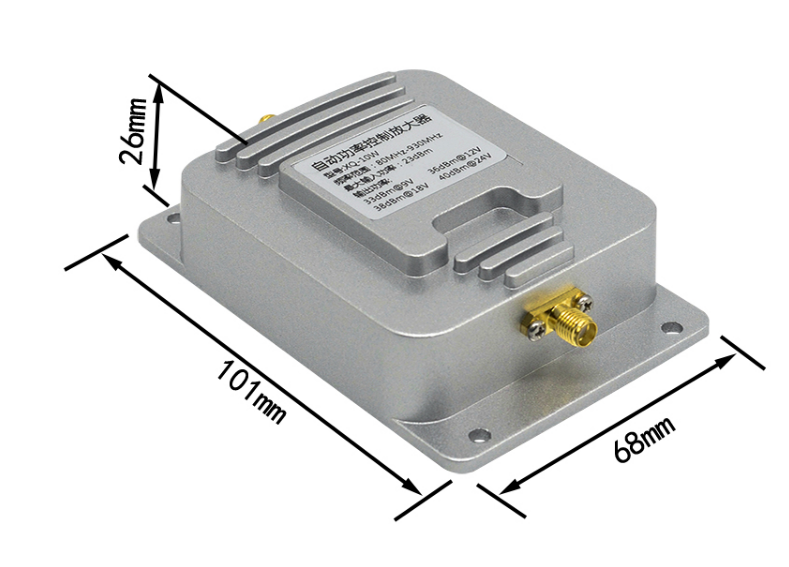

10W 80-930Mhz Signal Extender Auto Gain All Frequency Amplifier Repeater FM UHF VHF 315MHz 433 470MHz Power Enlarger

Product is an ultra-wide-band universal RF amplifier specially suitable for the Sub-1GHz frequency . It has a built-in high-performance automatic power control circuit, which can automatically adjust the actual output power according to the working voltage range. Within the range, it can be output at the maximum power under the premise of no compression and distortion of the signal.

Scope of application:
It is mainly used in various occasions that require one-way signal amplification, such as FM transmission, VHF digital radio station expansion, 315MHz (433MHz) ASK/OOK/FSK modulation one-way long-distance remote control, 470MHz frequency band walkie-talkie expansion Remote, VHF/UHF frequency band ultra-long-distance wireless microphone, UHF frequency band campus broadcast wireless coverage system, ISM900MHz frequency band and signal amplification in various teaching and research frequency bands.

Product Features:

1. The working frequency range is wide, and it can work stably in the frequency range of 80MHz – 930MHz.

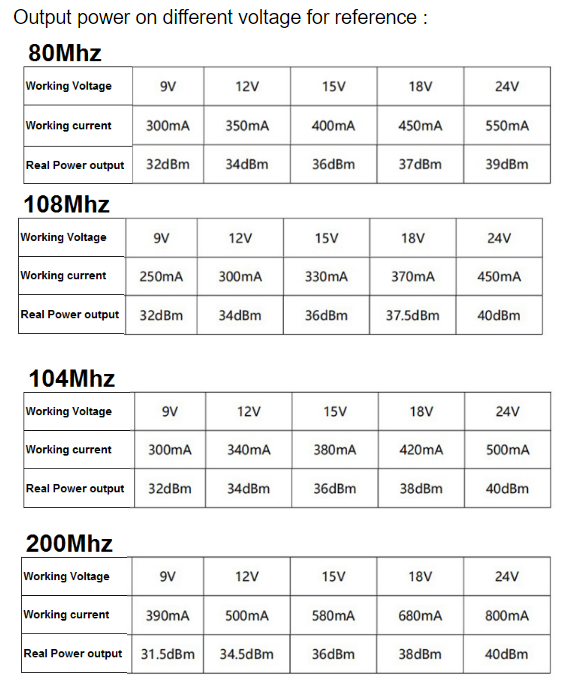

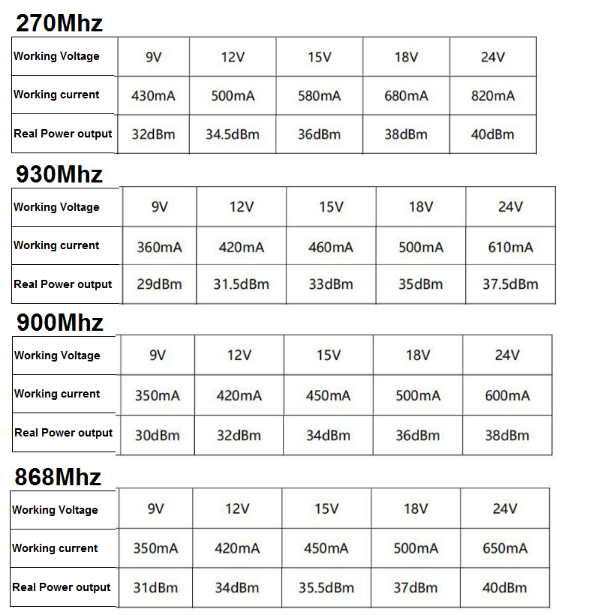

2. The maximum output power is up to 10W (40dBm@24V power supply).

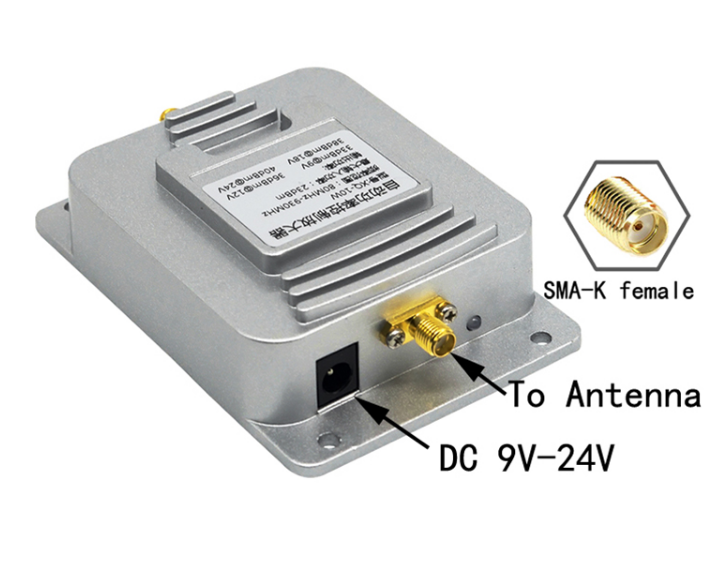

3. Wide operating voltage range, can work within the voltage range of 9V-28V.

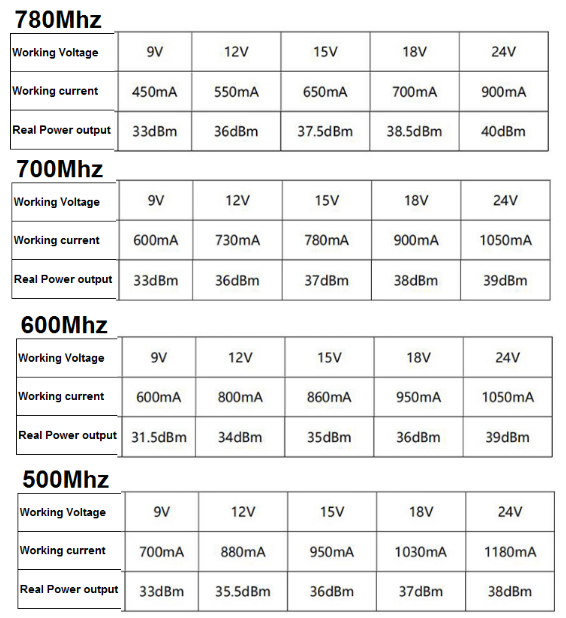

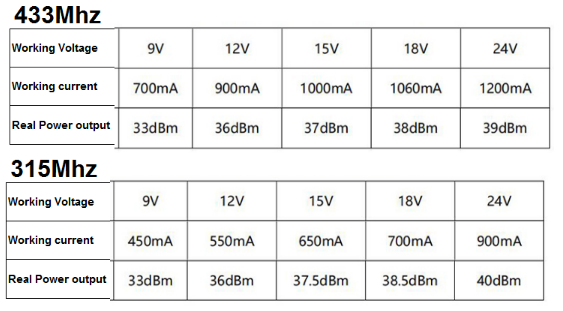

4. Built-in high-precision ADC, which can automatically detect the working voltage and automatically adjust thefinal transmit power according to the working voltage.
5. Built-in high-reliability ALC circuit, which can automatically adjust the link gain within a certain range to ensure that the amplifier can Output at maximum power without distortion.
6. The core components have high standing wave resistance, even if the antenna is disconnected in a short time, the signal will be totally reflected and amplified.

The device will not be burned due to excessive standing waves, and the product reliability is high.
